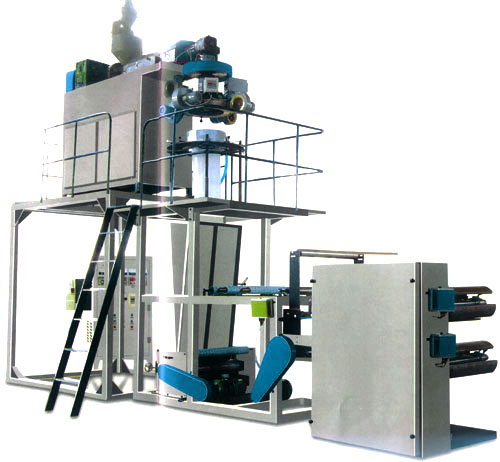

TBYS-500/700 Polypropylene film blowing machine

TBYS-500/700 Polypropylene film blowing machine

Performance USES:

u28彩票The machine is suitable for all kinds of transparent bag (such as clothes bag, children toy packaging, medical packaging etc.)

Technical parameters:

Model	TBYS-500	TBYS-700
The material suitable for	PP	PP
Membrane wide	500mm	700mm
Film thickness	0.015-0.15mm	0.015-0.15mm
Screw diameter	55mm	65mm
（L/D）	30:1	30:1
Second, National Culture	38CrMoAI	38CrMoAI
Electric heat	15kw	18kw
Temperature control point	4Z	4Z
Screw the cooling fan	0.25kw	0.25kw
Drive motor	11kw	15kw
Die diameter	200mm	280mm
The wind ring diameter	350mm	450mm
Biggest film production	40kg/h	60kg/h
Cooling windmills	0.55kw	0.55kw
Lead take wheel wide	600mm	800mm
Effective lead take membrane wide	500mm	700mm
Lead take motor	1.5kw	1.5kw
Lead take speed	5-30m/min	5-30m/min
Winding wheel wide	600mm	800mm
The biggest winding diameter	450mm	450mm
Winding motor	50kg/cm	50kg/cm
Machine size	500×160×380mm	530×180×380mm
Packing size	220×120×200mm	220×120×200mm
Net/gross	1800-2200	1800-2500
